Clans Machina

Escalators

Clans manufactures Escalators and Auto walks used for indoors and outdoors. Every Escalator and auto walk is equipped with upgraded technology, power saving and safety features which gives surety of low noise, decent, best product life, cost-effective and improved safety.

Escalator provides the surety of continuous activity of commuters from one floor to another floor without any wastage of time in waiting for commercial centers like shopping malls etc.

Autowalks are useful at places like big stations or airports where you have to travel a lot of distance on foot. It is also useful for taking trolleys or shopping carts from floor to floor.

An escalator is a power-driven, continuous moving stairway designed to transport passengers up and An escalator is a power-driven, persistent moving stairway intended to transport passengers up and down short vertical distances. Escalators are utilized around the world to move people on foot activity where lifts would be impractical. Places like malls, airplane terminals, transit systems, trade centers, lodgings, and public buildings. The advantages of lifts are numerous. They have the ability to move large quantities of individuals, and they can be put in the same physical space. They have no waiting up interim, they can be utilized to control individuals towards the main exit or unique exhibits, and they might be weatherproofed for external use.

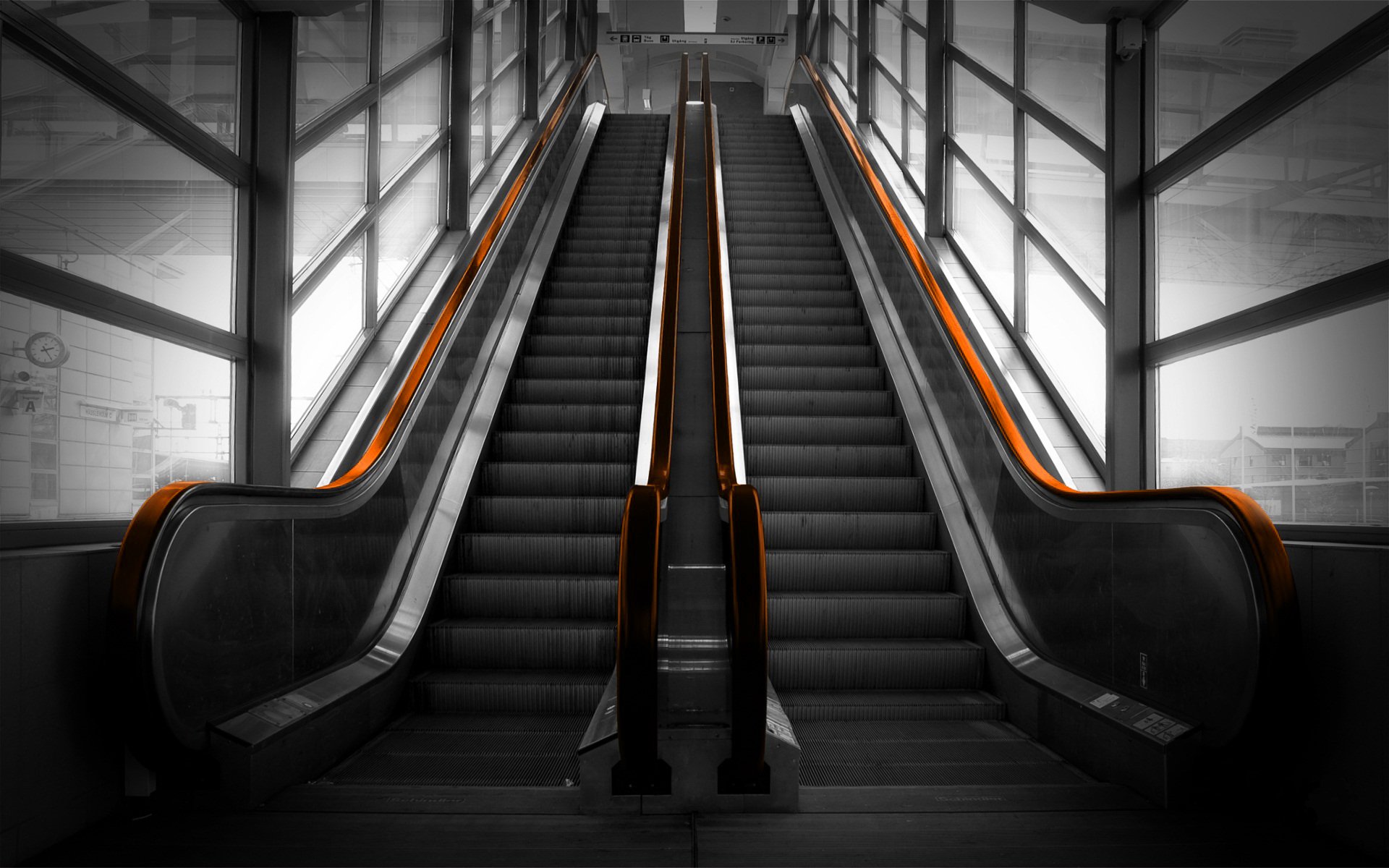

CES01

  • Technical Specification:

  • Ingress Protection : IP21.
  • Available Inclination : 30 / 35 Degrees.
  • Available Step Width : 600 / 800 / 1000 MM.
  • Handrail Type : Slim.
  • Fence : Safety Glass - Tempered.
  • Inner and Outer Cover : Stainless Steel.
  • Step Material : Stainless Steel / Aluminium Alloy.
  • Reversible.
  • Auto Reversal Protection.
  • Hand Rail Entry Protection.
  • OverSpeed Protection.
  • Step Collapse / Loss and Roller Rupture Protection.
  • Fault Indicator.
  • Drive Chain Loose Protection.
  • Emergency Button.
  • Automatic Lubrication System.
  • Altitude : Upto 1000 Meters.
  • Specifications:

  • Available Rated Speed 0.30 / 0.50 MPS.
  • Minimum Vertical Travel Height 1.50 M.
  • Max Vertical Travel Height 10 M.
  • Environment Indoor.
  • Ideal For:

  • Commercial Projects - New.
  • Commercial Projects - Existing.

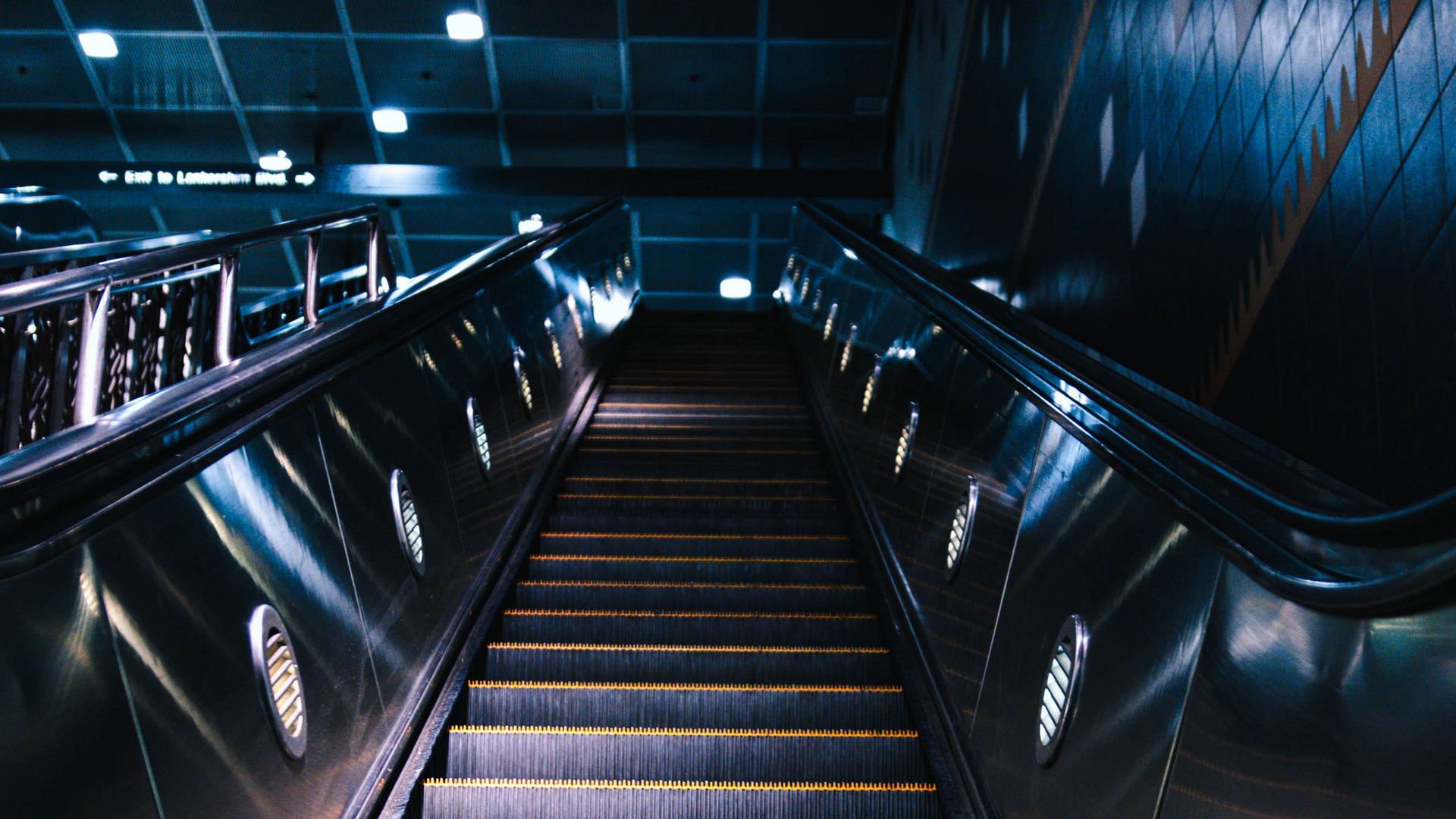

CES02

  • Technical Specification:

  • Ingress Protection : IP55.
  • Available Inclination : 30 / 35 Degrees.
  • Available Step Width : 600 / 800 / 1000 MM.
  • Handrail Type : Slim/Normal.
  • Fence : Safety Glass - Tempered/Stainless Steel.
  • Inner and Outer Cover : Stainless Steel 304.
  • Step Material : Aluminum Alloy.
  • Reversible.
  • Auto Reversal Protection.
  • Hand Rail Entry Protection.
  • OverSpeed Protection.
  • Step Collapse / Loss and Roller Rupture Protection.
  • Fault Indicator.
  • Drive Chain Loose Protection.
  • Emergency Button.
  • Automatic Lubrication System.
  • Altitude : Upto 1000 Meters.
  • Specifications:

  • Available Rated Speed 0.30 / 0.50 MPS.
  • Minimum Vertical Travel Height 1.50 M.
  • Max Vertical Travel Height 15 M.
  • Environment Indoor / Outdoor.
  • Ideal For:

  • Malls / Commercial Projects - New.
  • Malls / Commercial Projects - Existing.
  • Airports / Train Stations / Public Buildings / Projects - New.
  • Airport / Train Station / Public Buildings / Projects - Existing.
